➤ UP TO 8 MILES RANGE: A further and more impressive communication range comes from the 10W high power feature. The Radioddity GA-510 can be set in 3 power modes (high/medium/low) (10W, 5W, 1W) to give you the best talking quality under different circumstances.

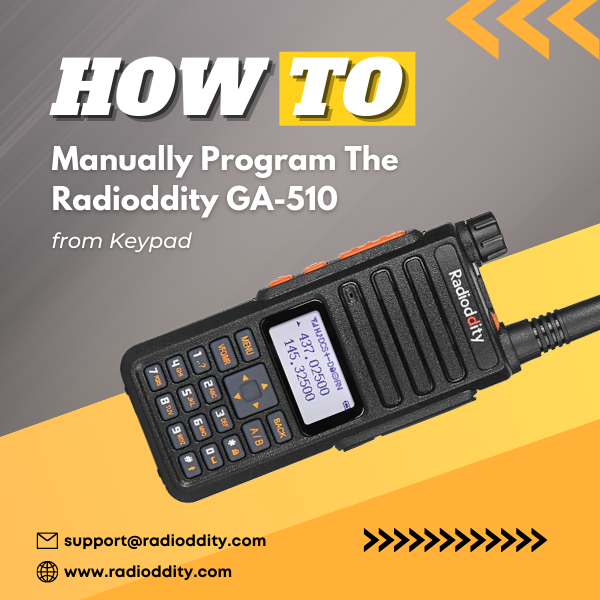

➤ MANUAL PROGRAMMING: Radioddity GA-510 supports full manual programming. You can directly add or delete any preset channel on the radio iteslf. PC programming is no longer a necessity, but is still an option.
➤ 96 HOURS BATTERY LIFE: Due to two 2200mAh high-capacity batteries this radio has a continuous working time of 12 hours under 10W (high) power mode, 24 hours life under 5W/1W (med/low) power mode and 96 hours on standby.
➤ DUAL BAND, DUAL WATCH, DUAL DISPLAY: The Radioddity GA-510 is a dual band radio with both UHF and VHF modes. You can set 2 frequencies or channels on the same screen and receive 2 signals at the same time.
➤ SUPPORT CHIRP Programming: Download the latest CHIRP software to program your GA-510!
➤ Disclaimer: No License is required to purchase this radio, nor to Monitor (listen) to the many Amateur (Ham) Radio frequencies. However, an FCC License is required to Transmit (Talk) on Amateur Radio Frequencies in the USA. Please visit http://wireless.fcc.gov/services/amateur/licensing to learn more.
Radioddity GA-510 is a dual-band tri-power handheld radio based on a new generation chip with up to 10W of high power output. In addition, the GA-510 has many other useful functions such as dual-channel monitoring, VOX, voice prompt, and manual programming. It even supports CHIRP programming.
3 Ways of Scanning
GA-510 has three different scanning options (time scanning, carrier scanning, search scanning) for your use to meet various requirements.
Display Lowercase and Punctuation
Unlike other radios, GA-510 completed with a bigger screen which can contain up to 10 characters long, letter (uppercase, lowercase), number and punctuation are available.
SOS Alarm Function
Like no other analog radios, GA-510 come with an SOS button at the top of the radio. You can activate the alarm by simply pressing and holding the orange button for 2s. The alarm will go to other radios with the same frequency.
154 CTCSS / DCS
GA-510 supports CTCSS, DCS and DTMF tones/codes. In the US, most repeaters require CTCSS/DCS for access, also allow you to make a group calling with a party, offering you more sub-channel to communication without interferences.
SOS Alarm Button
CTCSS / DCS / Tone-burst
3 Ways of Scanning Function
Dual Band Dual Watch Dual Display
Frequency / Channel Mode Switching
Tx Over Time Setting
Backlight Time Setting
Frequency range (MHz): VHF 136-174MHz | UHF 400-480MHz
Memory channels: 128
Supply voltage: DC 7.4V
Mode of operation: Simplex or semi-duplex
Frequency step (kHz): 2.5K/5.0K/6.25K/10.0K/12.5K/20.0K/25.0K/50.0K
Frequency stability: ±2. 5ppm
Antenna impedance: 50 Ohm
Operating temperature: -20OC to +60OC
Duty cycle: 03/03/54 min. (Rx/ Tx/ Standby)
Consumption: ≤75mA (standby) | 380mA (reception) | ≤1.4A(transmission)
Radio weight (g): 0.66lb | 300g
Dimensions (mm): 4.27in x 2.17in x 1.17in | 120mm X 55mm X 30mm
1x Radioddity GA-510 Radio
2x 2200mAh Battery
1x Dual Band Antenna
1x Programming Cable
1x Desktop Charger
1x Belt Clip
1x Wrist Strap
1x User Manual
2020 December QST Review
1 Year and 6 months Manufacturer's Warranty.
